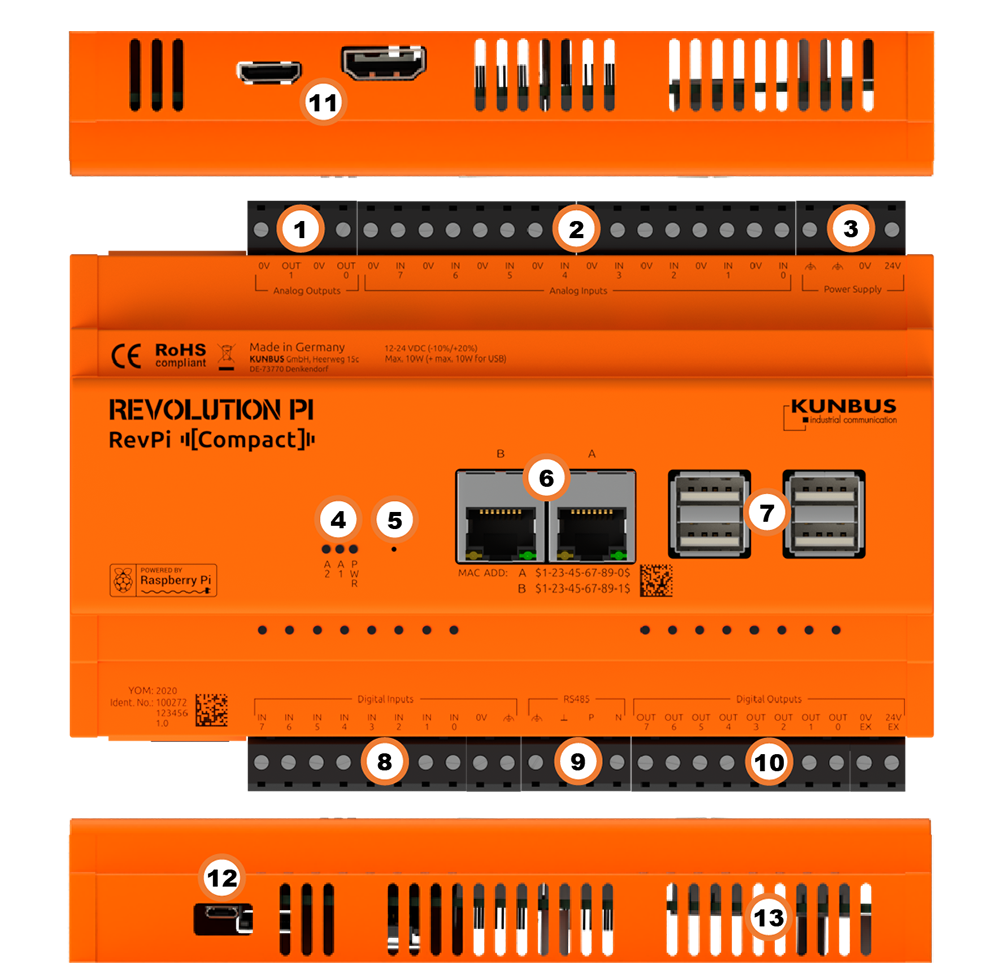

RevPi Compact

See: RevPi Images.

The Virtual Devices are delivered with the RevPi image as components in PiCtory included:

The scope of delivery includes

The reset button restarts the RevPi.

▷ You can press the button by means of a thin object (e.g. a needle).

❯❯ The RevPi shuts down and restarts.

From the RevPi Bookworm Image (10/2024) onwards, the basic configuration of the RevPi devices is carried out via the Cockpit web application.

Until the RevPi Bullseye Image (04/2024), the basic configuration of the RevPi devices is carried out via the RevPi Status web application.

▷ Start PiCtory.

▷ Select the RevPi base module from the Device Catalog and drag and drop it onto the empty slot with position number 0.

❯ The configurable values appear in the Value Editor.

▷ Save the configuration as the start configuration with File > Save as Start-Config.

❯❯ The start configuration is called up directly after each boot process.

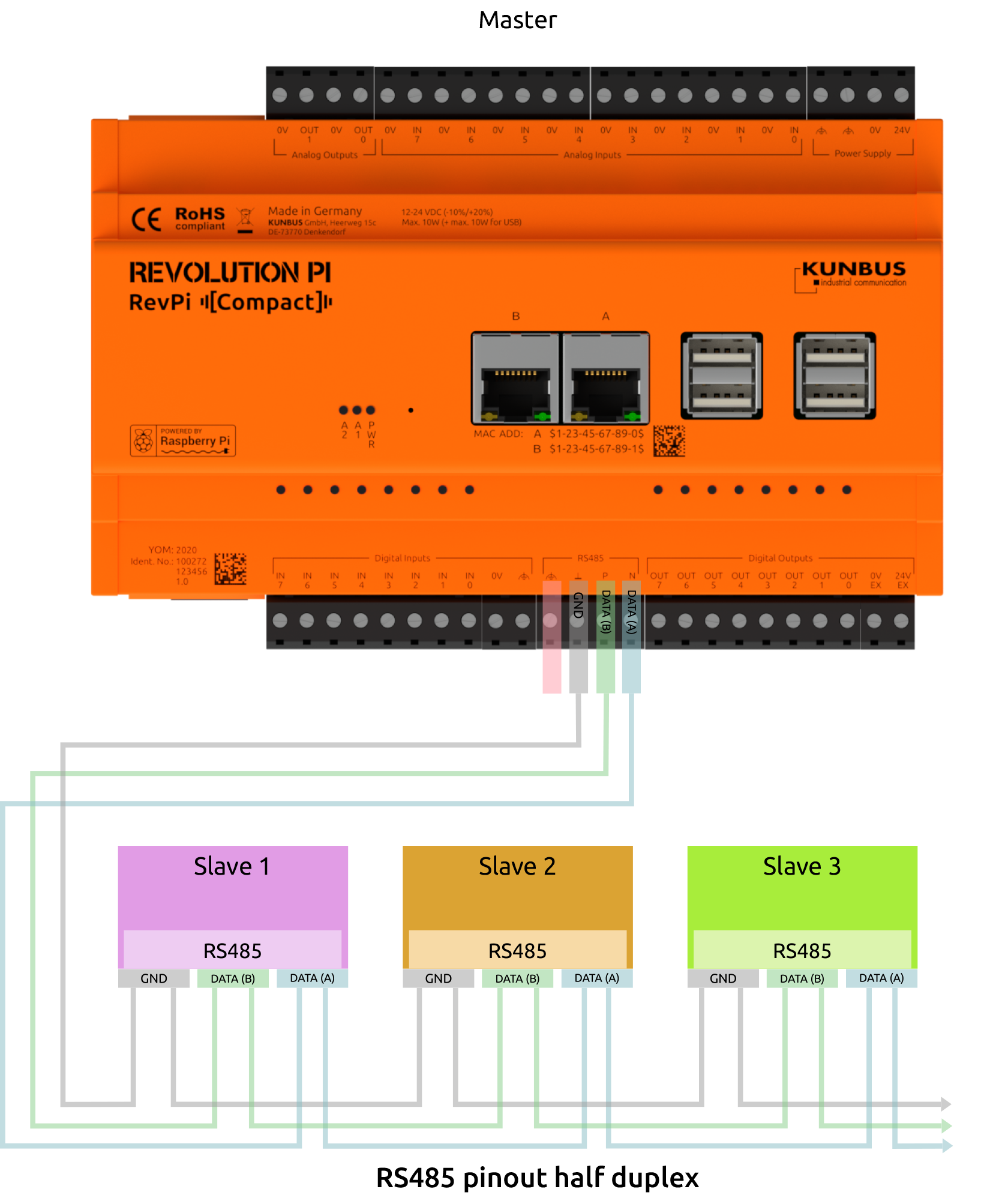

The RevPi has an RS485 interface to connect serial devices such as sensors.

The data lines of the RS485 socket are marked P (positive) and N (negative). For other devices, these lines are often referred to as D+ and D- or A and B.

Wiring of the RS485 terminal:

Only the lines N and P are required for the actual data transmission. We recommend to use a twisted pair for longer line lengths or higher bit rates.

If a reference potential should be necessary, you can use the electrical circuit ground at terminal ┴ for this purpose. However, you should not use this connection if it is not actually necessary. The cable shielding should ideally be connected to the FE terminal.

Cables having a length >30 m and cables leaving the building must be shielded. To improve the EMC properties of the shield, connect the shield to the grounded mounting plate over a large area using a conductive cable clamp. As an alternative, you can use a conductive EMC cable gland to lead the cable through the control cabinet wall.

Linux addresses the interface via the character device /dev/ttyRS485. You can configure bit rates up to 3,000,000. However, occasional reception errors may occur at more than 230,400 bps. The reason is that the UART of the Raspberry Pi, to which the interface is connected, has only a 16 byte FIFO and does not support DMA. The higher the bit rate, the more often the FIFO is not read out fast enough and received data is lost. For example, at 460,800 bps are 1- 2 errors per 50 MByte received, at 921,600 bps there are about 10 errors. If your RevPi Compact mainly sends data and only rarely receives it, you can also use higher bit rates. Otherwise we recommend to not set more than 230,400 bit/s.

✓ The integrated 120 Ω terminating resistor of the RS485 interface is switched off after a restart.

▷ Check out the Git repository of the command line tool rs485_config from GitLab with the command:

▷ Build the tool with the command:

▷ Activate the resistor with the command:

Replace <SERDEV> with the name of the interface, e.g. /dev/ttyRS485.

▷ Check whether the resistor has been activated and display the settings of the RS485 interface with the command:

❯❯ If the resistor is activated, Bus termination: Yes is output.

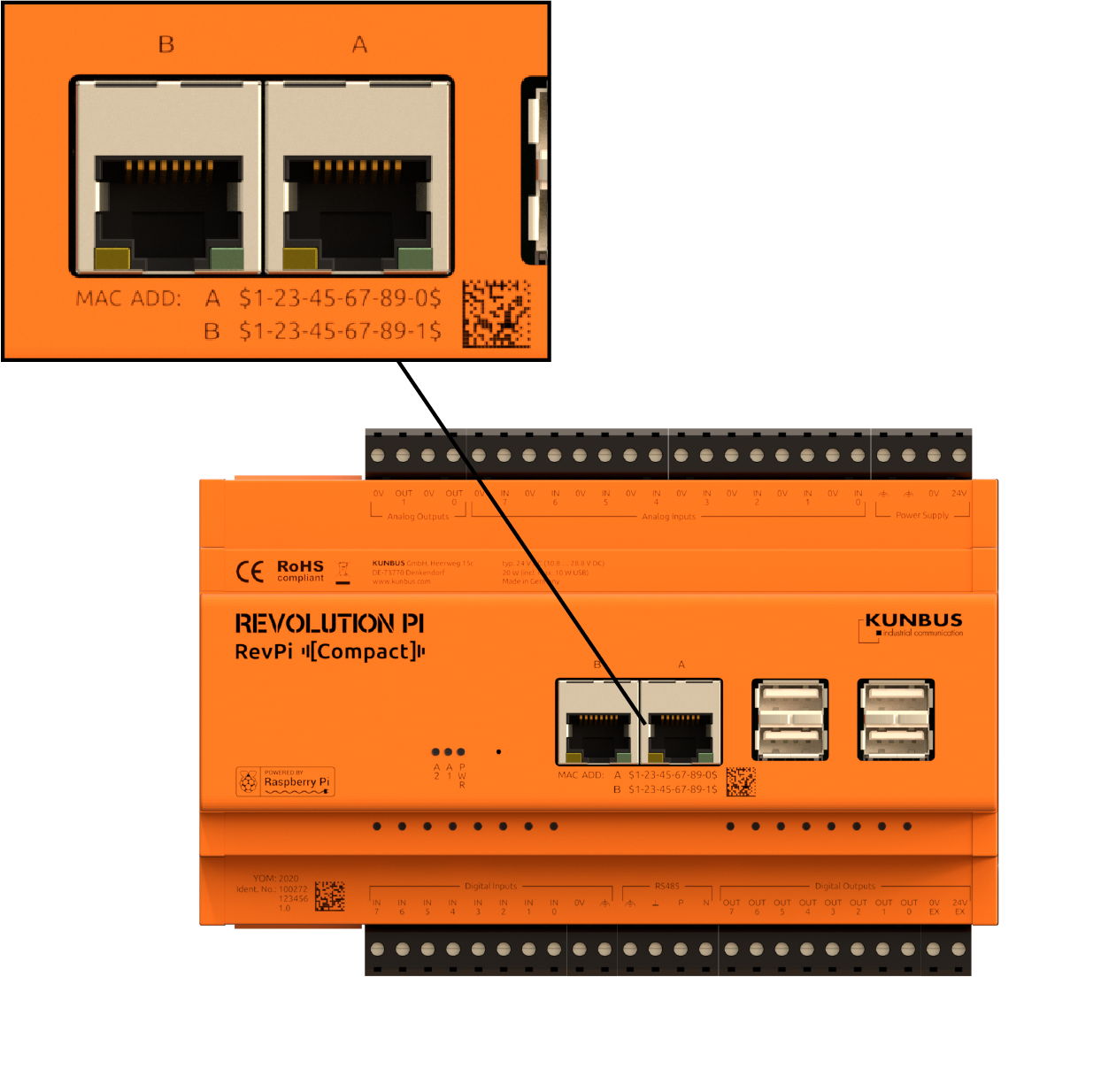

The RevPi has two Ethernet Interfaces. Each of the two sockets is designed for different requirements.

You can achieve a maximum throughput of 11.2 MByte/s at this interface.

This Ethernet interface is connected to the internal USB bus. It has a maximum bandwidth of 480 MBit/s. Since all devices on the bus share this bandwidth, the throughput on this Ethernet interface may decrease if you connect many USB devices. You can address this interface in the software as eth0.

The MAC address for this Ethernet interface is printed on the housing and stored in the file /boot/config.txt. You can change the MAC address for eth0 here, if necessary. If no MAC address is entered in the file /boot/config.txt, e.g. because you have uploaded a new image, a unique MAC address is calculated from the serial number of the Compute Module.

This Ethernet interface is connected to the SPI bus (spi0). As a result, this interface shares the bandwidth with other devices you connect to the SPI bus.

You can achieve a throughput of up to 2.1 MByte/s at this interface. Even though this is slower than the Ethernet interface A, the Ethernet interface B is considerably robust against electromagnetic interference.

Please check if this interface is fast enough for your project. If you need a faster Ethernet connection for your project, we recommend to use interface A or combining both interfaces. This is explained in the following section.

You can address this interface in the software as eth1.

The MAC address for this Ethernet interface is printed on the housing and stored in the file /boot/config.txt. You can change the MAC address for the Ethernet interface B (eth1) here, if necessary. In addition, the MAC address is stored in a separate memory module of the Ethernet interface B (eth1). This factory MAC address is used if no MAC address is entered in the file /boot/config.txt, e.g. because you have installed a new image.

To take advantage of both Ethernet interfaces, you can combine them into a virtual unit. It is called bonding. This allows to use the high bandwidth of the Ethernet interface A (eth0). In case of malfunctions on the USB bus, the system switches over automatically to the robust SPI interface.

See also: Details about combining the two Ethernet interfaces.

Please note that it is not easy to connect both Ethernet interfaces to the same subnet without bonding. If you want to proceed in this way, you need to adjust the ARP configuration and it requires policy routing. However, since this is very complex, we do not recommend this method.

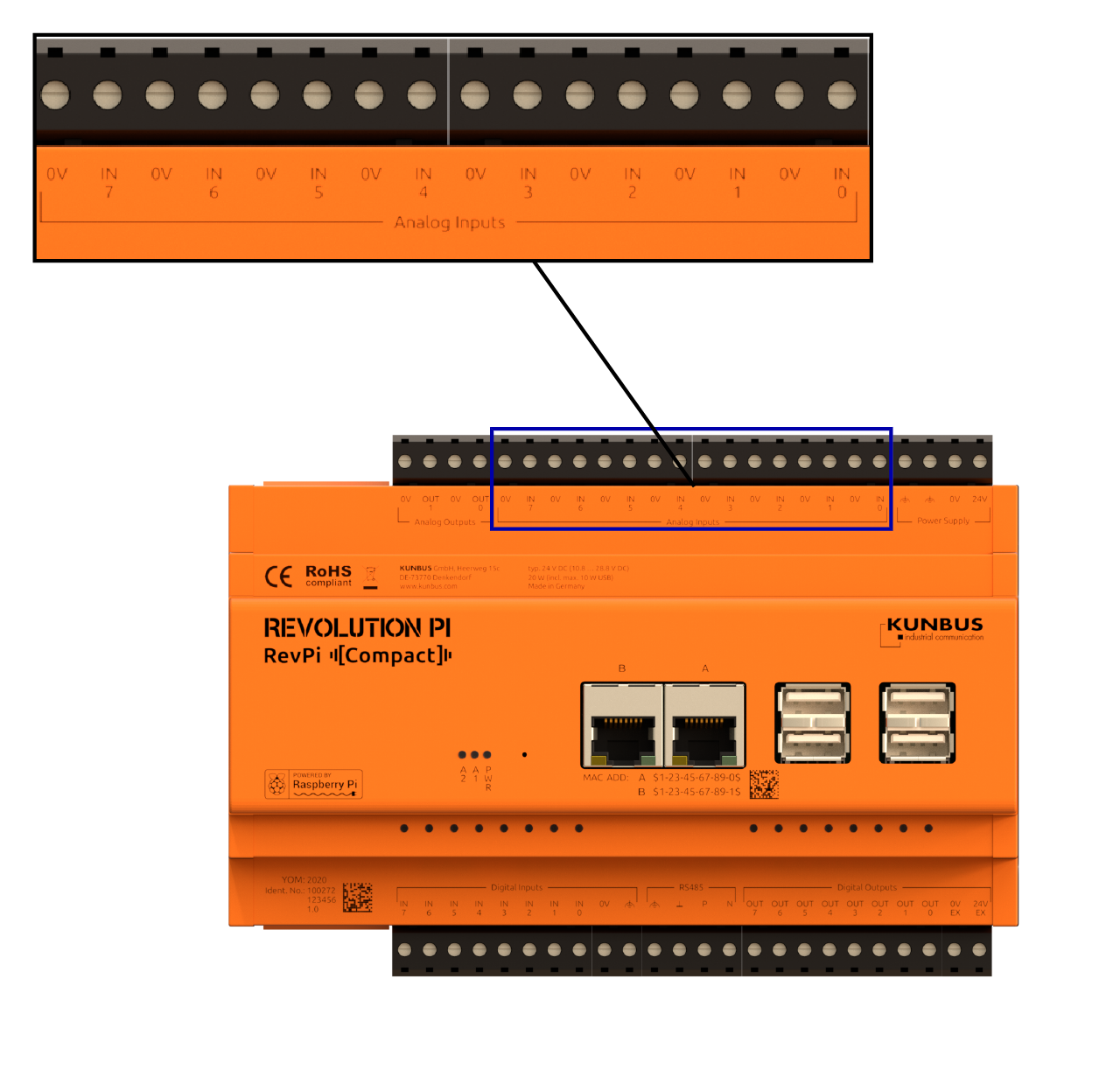

The RevPi Compact has eight analog inputs and two analog outputs.

You can measure a voltage between 0 and 10 V with each of the analog inputs or do a RTD measurement using a resistance temperature sensor (Pt100/1000). The analog input can also act as a constant current source. The Pt100/1000 sensor is connected directly to the analog input. Only a two-wire measurement can be made.

The MCP3550-50 analog-to-digital converter used for this purpose has a high resolution of 21 bits, but takes 85 milliseconds per measurement which is a comparatively long time. Another 40 milliseconds are required for switching the constant current source on and off and for switching the multiplexer, via which the eight inputs are connected to the ADC.

You can access the analog inputs either by using or not using piControl:

Using piControl, each input is read out with a cycle time of one second and stored in the process image as a 16-bit value in mV (for voltage measurement) or in 1/10 °C (for temperature measurement). Whether an input is used for voltage or temperature measurement is selected in PiCtory.

If piControl is not used, the cycle time for reading a single input is reduced to 125 milliseconds, and the raw value is available in full 21-bit resolution. You can calculate the values from this raw data.

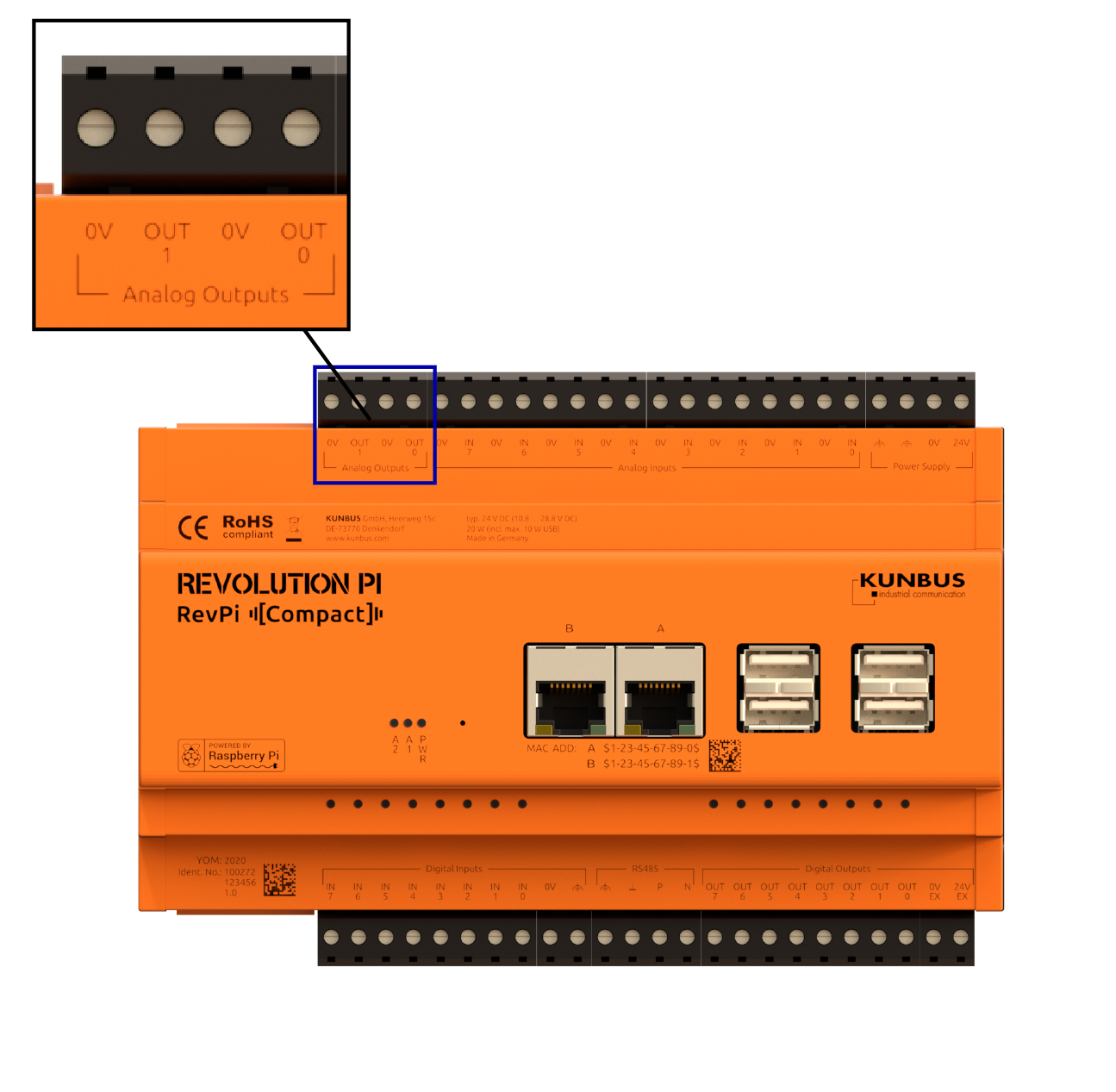

Your RevPi Compact has two analog outputs. They can output a voltage between 0 and 10 V. You can connect actuators such as frequency converters.

The DAC082S085 digital/analog converter used for this purpose has a resolution of 8 bits.

Similar to the analog inputs, you can access the outputs either by using or not using piControl: Using piControl the outputs are updated by the process image with a cycle time of 250 µs. You only have to store the required voltage in mV there. Not using piControl you can update the outputs at any time. However, you have to calculate then the raw value in 8-bit resolution from the required voltage yourself.

There are three options for powering down the analog outputs: terminated with 2.5 kΩ, with 100 kΩ or high impedance. The powerdown can only be used for both outputs together and only by not using piControl.

The RevPi has eight digital inputs and eight digital outputs.

You can access them either with piControl or without piControl. With piControl they are synchronized cyclically with the process image every 250 µs.

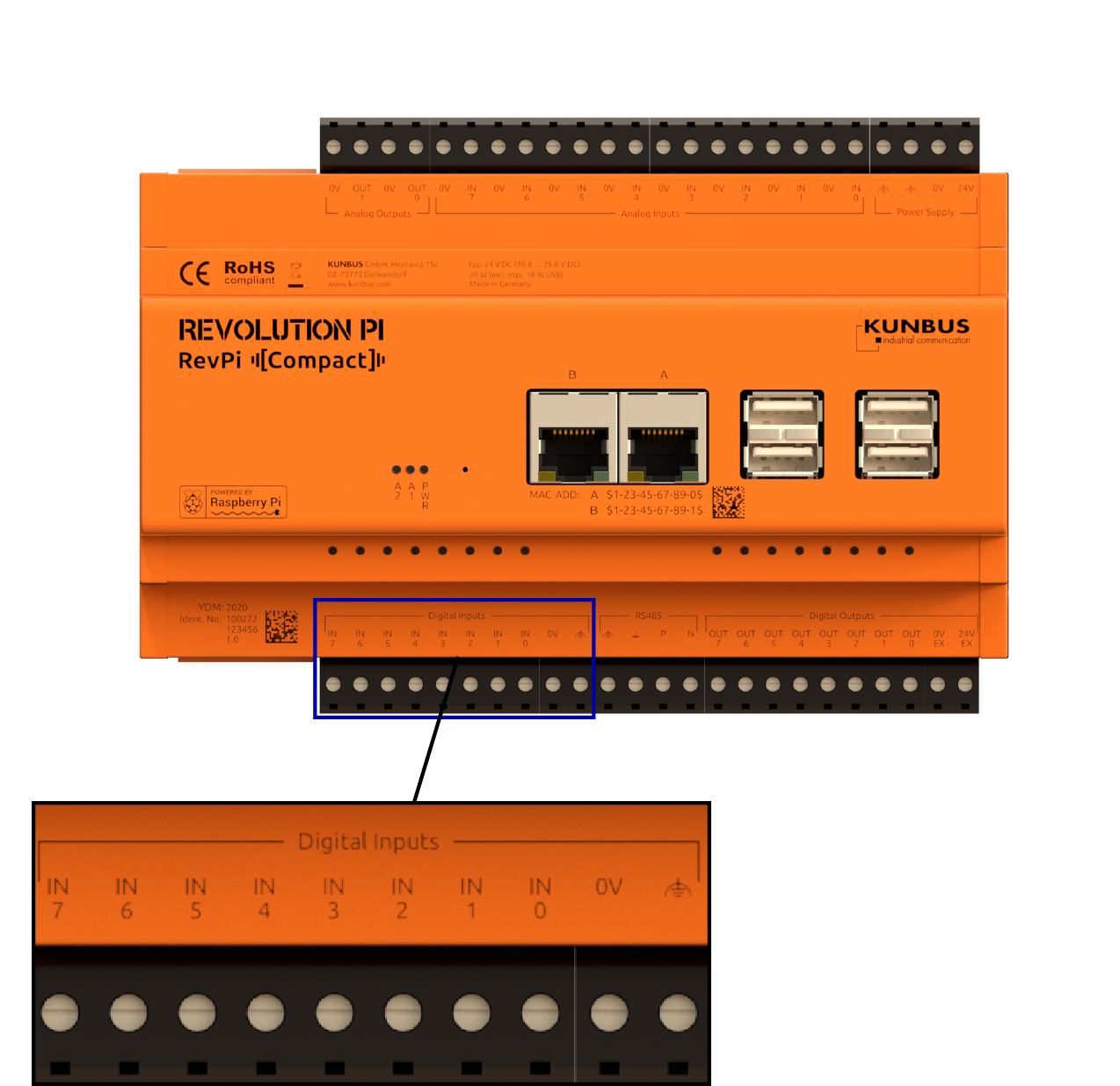

The digital 24 V inputs are supposed to forward signals to the controller that are e. g. determined by a sensor.

The inputs are designed for voltages up to 36 V.

The inputs are not isolated galvanically. A separate terminal is available for connecting the ground.

The LEDs above each digital input light up if the input is high.

Debouncing can be carried out in four stages: 25 µs, 750 µs, 3000 µs or no debouncing. The debouncing can only be set jointly for all eight inputs.

The inputs are able to detect an excess temperature (135°C): a warning is then issued in the kernel log and a status bit is set in the piControl process image.

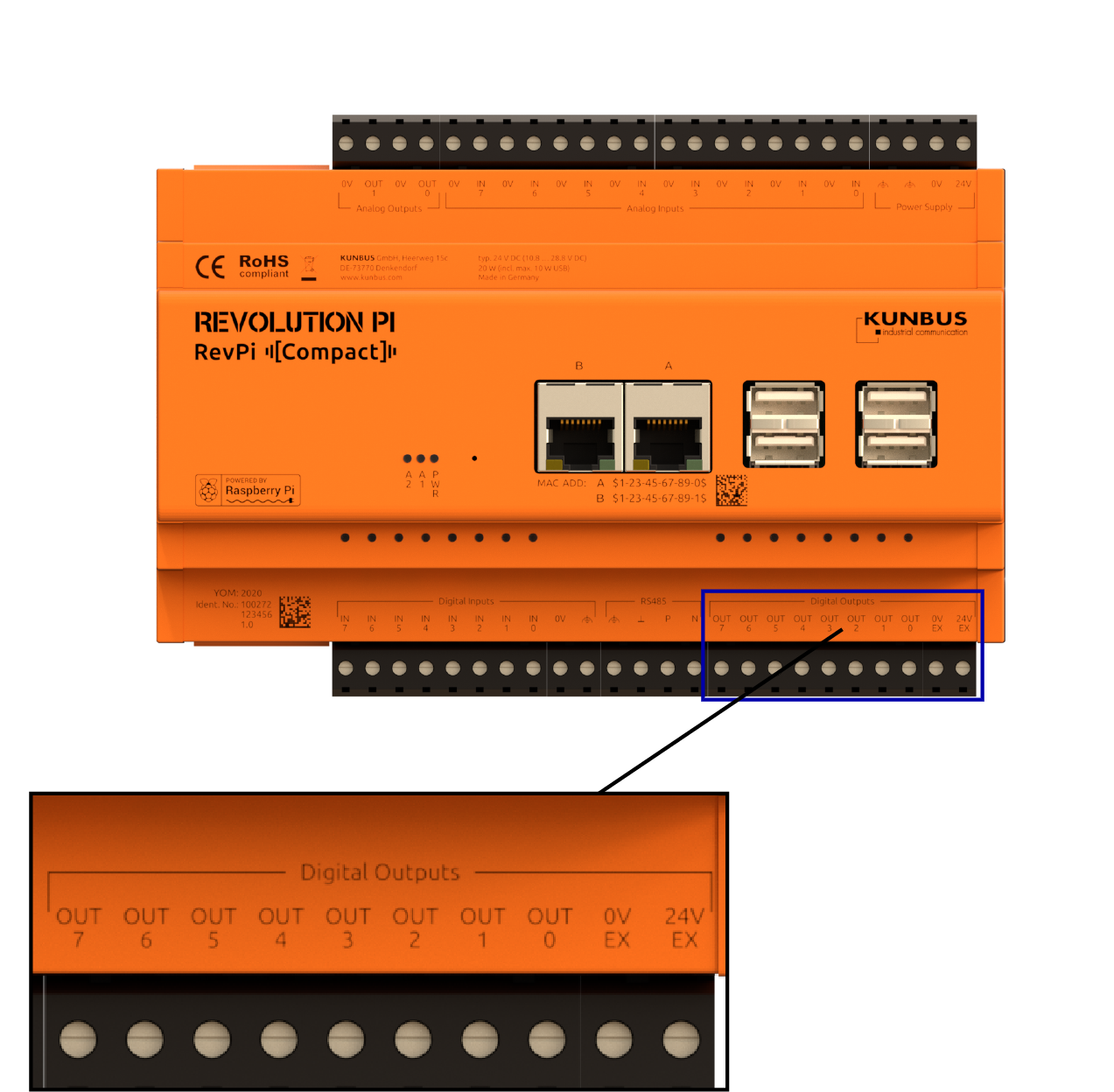

Unlike the inputs, the eight digital 24 V outputs are isolated galvanically .

The digital outputs must be supplied separately with a voltage of 12 …​ 36 V via the 0V EX and 24V EX connections. Always use the same ground potential that supplies the connected sensors or actuators.

The digital outputs are protected by an automatic switch-off in case of excess temperature. This switch-off applies separately to each individual output.

The LEDs above each digital input light up if the output value is high.

The outputs are monitored by a watchdog and set to low if they are not rewritten every 9 ms. This ensures that the outputs are brought into a safe state, for example in the event of a system crash. In this case the LEDs do not light up any longer. However, this monitoring only works if the outputs are not set with piTest or piControl, but the GPIOs are written directly. The background is that the output in piControl is held at 1 by a loop until the output is actively set to 0.

The RevPi has 4 USB-A interfaces. This allows USB 2.0 client devices such as USB hard disks, surf sticks, keyboards or mice to be connected.

If more than four USB-A ports are required, a USB hub can be connected.

The PWR (Power) LED indicates the device status.

LEDs A1 and A2 are customizable.

The LEDs can be used for user-specific requirements such as indicating a network connection, indicating that a memory limit has been exceeded, monitoring a process and indicating faults.

The LEDs can be switched in the command line application piTest with the variable RevPiLED.

The RevPiLED output has a defined byte length and therefore has a certain number of bits that are read from right to left. Certain bit positions are each assigned to an LED. The LED is switched by setting the respective bits to 0 or 1.

An LED signal is set in the command line with the command piTest -w RevPiLED,x where x corresponds to the decimal value calculated from the

To switch several LEDs simultaneously, the respective decimal values have to be added up.

Example: If LED A1 shall flash red and LED A2 green at the same time, the command is piTest -w RevPiLED,6 (bit pattern: 0000 0110 = decimal values 2+4).
