RevPi Connect 5

Next Level Industrial Computing

Discover the most powerful Industrial Raspberry Pi on the market: the RevPi Connect 5

Maximum Performance

Build high-performance industrial applications: The RevPi Connect 5 combines the power of the Raspberry Pi Compute Module 5, the flexibility of Raspberry Pi, and industrial reliability.

  • CPU: Quad-core ARM Cortex-A76 processor at 2.4 GHz
  • RAM: High-speed data transfer with LPDDR4X-4267
  • Video Performance: 4K resolution at 60 fps thanks to VideoCore VII GPU – supporting OpenGL ES 3.1 and Vulkan 1.2
  • Ethernet: Two PCIe-based Gigabit Ethernet ports with low latency

Versatile Interfaces

Thanks to the modern interfaces and the integrated TPM 2.0 chip, you can build secure and versatile industrial applications.

Combined with expansion modules, the RevPi Connect 5 unifies the functions of an industrial PC, industrial controller, edge device, IIoT gateway, and HMI and can perform these tasks in parallel thanks to its high computing power.

Flexible and Reliable

The RevPi Connect 5 adapts to your requirements: You can flexibly expand it with our RevPi I/O modules and fieldbus gateways.

With Revolution Pi, you're choosing reliable 24 V industrial hardware, engineered to meet the PLC standard EN 61131-2 and EMC-compliant according to IEC 61000-6-4 and IEC 61000-6-2.

This makes the RevPi Connect 5 the ideal platform for demanding industrial applications.

RevPi Connect 5 – Powered by Raspberry Pi CM5

The RevPi Connect 5 is the most powerful industrial Raspberry Pi on the market. It's based on the CM5, the latest version of the Raspberry Pi Compute Module:

  • Industry certified
  • Built-in eMMC storage
  • Guaranteed long-term availability

Raspberry Pi has been developing Compute Modules for industrial environments since 2015.

EN 61131-2
-25 °C to +55 °C
Made in Germany
Powered by Raspberry Pi Logo

Flexible Interfaces for Your Project

2 x Gigabit Ethernet
2 x USB-A
1 x Micro HDMI
Wi-Fi / BT (optional)
1 x RS485 (optional)
1 - 2 x CAN FD (optional)
USB-C
PiBridge for RevPi Expansion Modules

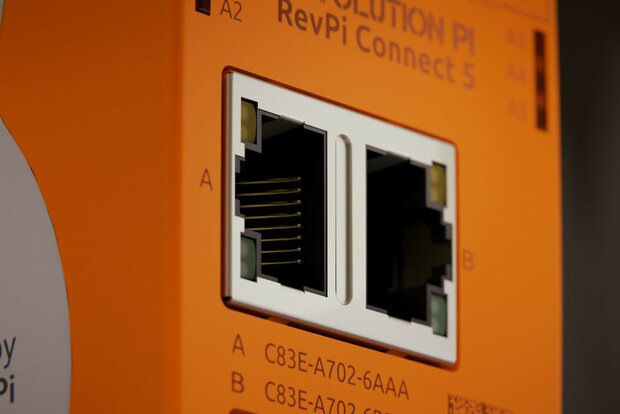

Two Gigabit Ethernet RJ45 ports ensure fast data transfer and low latency.

  • Connect your RevPi Connect 5 seamlessly with IT systems and Ethernet-based fieldbuses
  • Transfer sensor data from I/O and fieldbus expansion modules directly to your IT infrastructure
  • Connect Ethernet-based peripherals – from scanners and printers to RFID readers

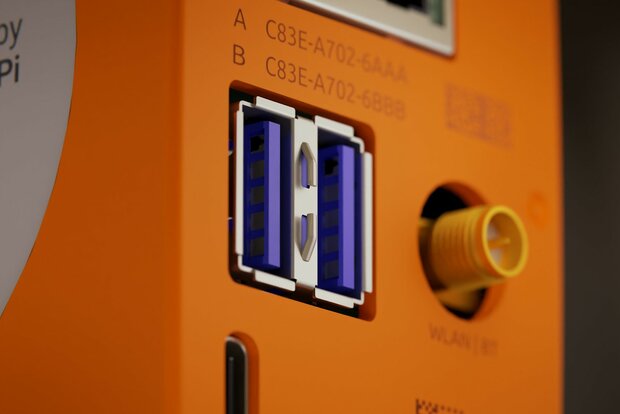

Two USB-A ports with USB 3.2 Gen 1 allow transfer speeds of five gigabits per second. Easily connect all essential USB devices to your RevPi Connect 5:

  • Storage devices like external hard drives
  • Wireless modules like ZigBee sticks and Bluetooth antennas
  • Industrial peripherals like cameras, data loggers, and printers
  • Mouse and keyboard for classic IPC applications in combination with HDMI

Control monitors and touchscreens using your RevPi Connect 5's Micro-HDMI 2.0a (4K) port. The applications are diverse:

  • Full-featured industrial PC with mouse and keyboard
  • Integrated HMI solution for control cabinets, plants, and machines
  • Kiosk system or self-service terminal
  • Controller for large displays in production halls and control systems

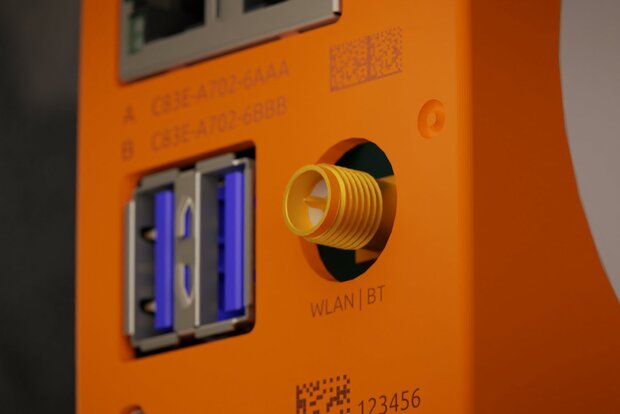

Equip your RevPi Connect 5 with Wi-Fi and BT connectivity when needed. Enjoy reliable wireless communication thanks to internal and external antenna connections.

Securely connect your RevPi Connect 5 to:

  • Wireless sensors and actuators
  • Industrial IoT platforms and cloud services
  • Mobile devices for remote monitoring
  • BLE beacons for precise indoor positioning
  • Peripheral devices like barcode scanners and speakers

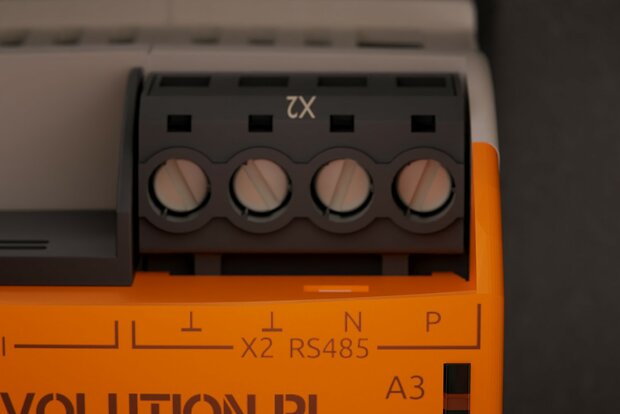

The optional RS485 interface delivers reliable serial communication. With robust 4-pin screw terminals and noise-resistant differential signaling, you can establish stable data connections – even over long distances and in demanding industrial environments. Perfect for:

  • Integrating existing equipment and legacy systems
  • Communicating with Modbus devices
  • Reliable data transmission in factory automation
  • Robust connections in building and process control

Built-in protection circuits ensure maximum operational reliability, even in challenging electromagnetic conditions.

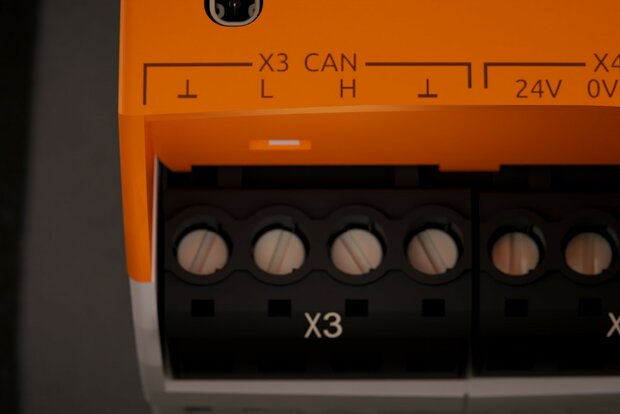

Equip your RevPi Connect 5 with up to two CAN FD interfaces featuring robust 4-pin screw terminals.

Key advantages:

  • Higher bandwidth for data-intensive applications
  • Backward compatibility with classic CAN networks
  • Easy connection of sensors and actuators
  • Integration into modern automation and machine networks as well as automotive systems

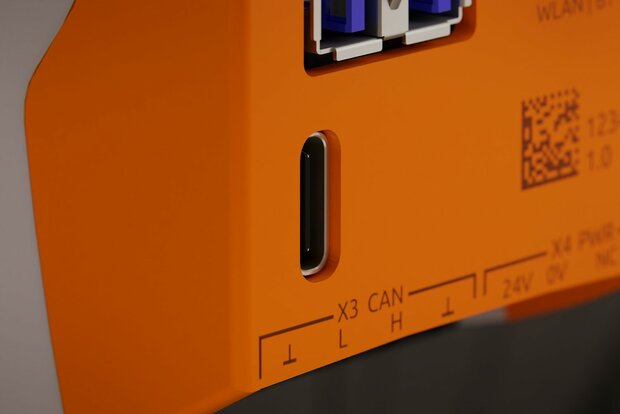

Use the USB-C port to flash new operating system images on-site – perfect for systems that cannot or should not be updated remotely via over-the-air updates.

Do you need more inputs and outputs or fieldbus connections?

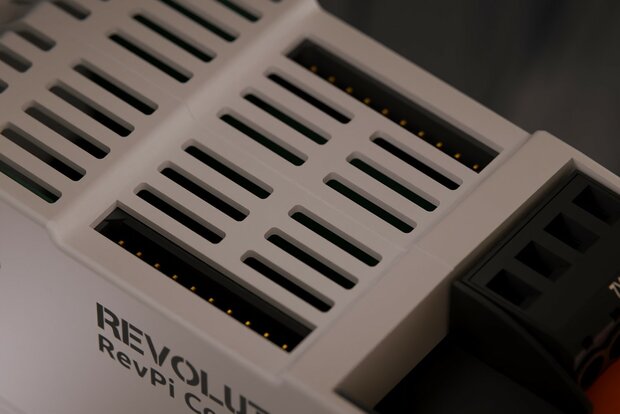

With the two top-mounted PiBridge interfaces, you can connect your RevPi Connect 5 via plug-and-play to our flexible RevPi Expansion Modules.

The high-performance data bus ensures real-time communication with industrial-grade quality.

Find the Right Variant

Item No.

RAM

eMMC Storage

Wi-Fi / BT

RS485

CAN FD


1004124 GB32 GBNo1 xBuy Now
1004134 GB32 GBYes1 xBuy Now
1004144 GB32 GBNo1 x1 xBuy Now
1004154 GB32 GBYes1 x1 xBuy Now
1004168 GB32 GBNo1 xBuy Now
1004178 GB32 GBYes1 xComing Soon
1004188 GB32 GBNo1 x1 xBuy Now
1004198 GB32 GBYes1 x1 xComing Soon
1004208 GB32 GBYes2 xComing Soon



Receive an update when further product variants are available:

Subscribe to E-Mail Updates

I/O Modules and Gateways

Expandable Platform

You can expand the RevPi Connect 5 easily with a variety of RevPi I/O modules and gateways using the two top-mounted connectors.



View I/O Modules



View Gateways



Revolution Pi Software

Build Applications Your Way

Build applications using your preferred tools on Revolution Pi's open Linux operating system – or use numerous pre-installed apps.

Key features of our operating system:

  • Based on Raspberry Pi OS
  • Optimized for industrial use including real-time kernel patch
  • Regular security updates
  • Docker container support
  • Custom images available

Learn More

Order Now and Start Your Project



Visit Our Shop

Are you planning volume production or device customization? Our sales team is here to find the right solution with you:
Get in Touch



Customization

Tailored to Your Project

From custom housing design to individual operating system images: Create your customized product with the RevPi Connect 5. We'll handle the hardware management for you.

Learn More

The Right Device for Every Project

In our most versatile product series, you'll find exactly the right device for your application. In our online store you can order directly or choose shipping through a global distributor.

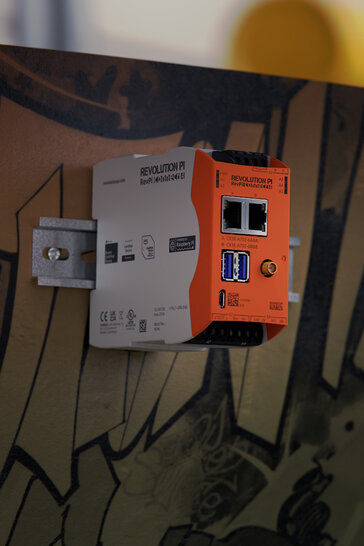

RevPi Connect mounted on DIN rail

powered by Compute Module 5

RevPi Connect 5

from € 499.00
plus VAT

RevPi Connect 4 mounted on DIN rail

powered by Compute Module 4

RevPi Connect 4

from € 389.00
plus VAT

RevPi Connect S mounted on DIN rail

powered by Compute Module 4S

RevPi Connect S

from € 407.00
plus VAT

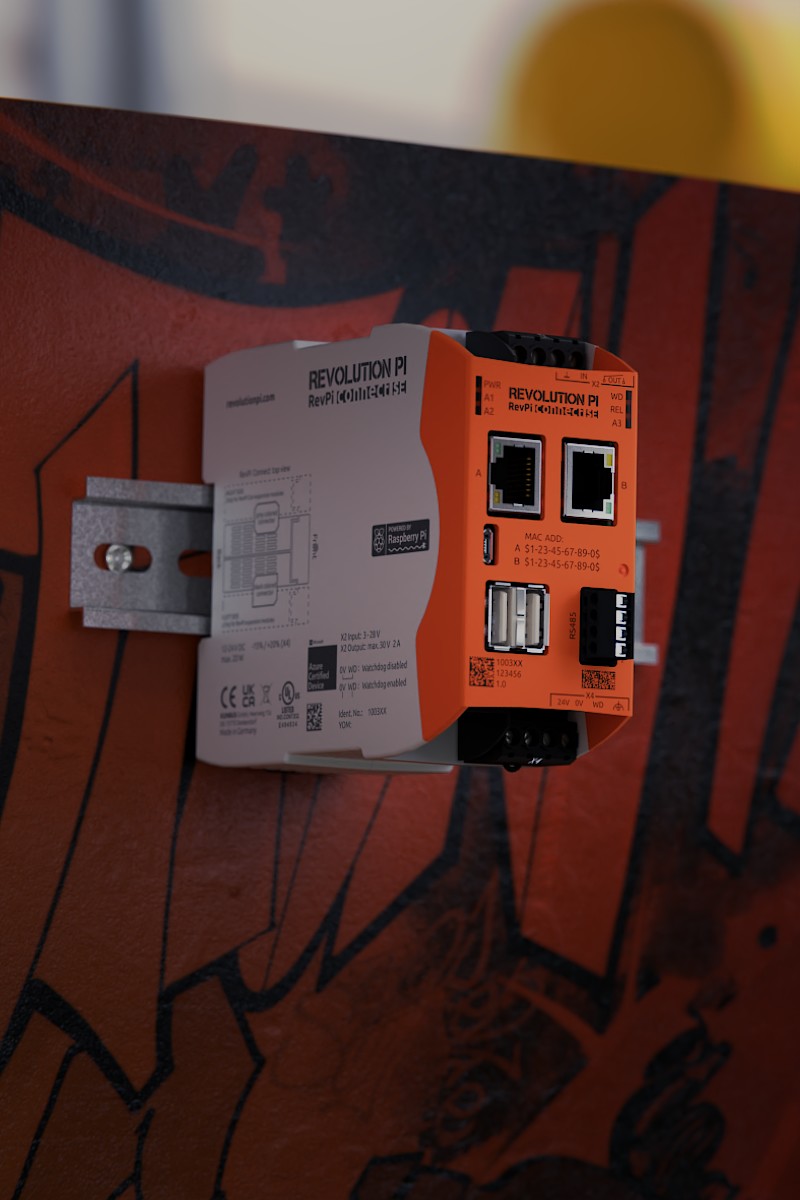

RevPi Connect SE mounted on DIN rail

powered by Compute Module 4S

RevPi Connect SE

from € 377.00
plus VAT
