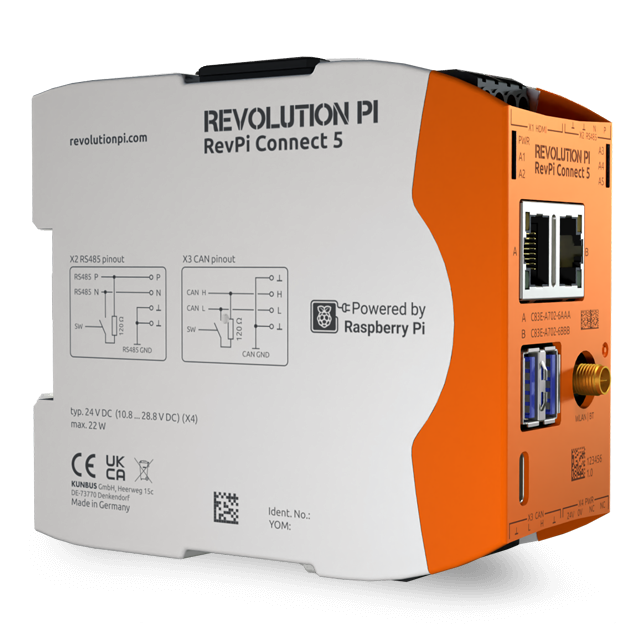

RevPi Connect 5
Equipped with the Raspberry Pi Compute Module 5, which combines the powerful ARM Cortex-A76 processor and the versatile Broadcom BCM2712 system-on-chip, the RevPi Connect 5 enables energy-efficient processing with extensive peripheral connectivity - perfect for industrial automation based on proven Raspberry Pi technology.
The quad-core processor clocks at up to 2.4 GHz and therefore offers significantly higher computing power compared to the Compute Module 4.
For high connectivity, the RevPi Connect 5 can be equipped with various communication interfaces: from wireless WLAN and industry-proven RS485 to the fast CAN FD bus.
The modular approach of the RevPi Connect 5 enables flexible expansion with RevPi I/O modules for additional inputs and outputs as well as RevPi gateway modules for connecting additional fieldbus protocols. A total of up to ten expansion modules (including a maximum of two gateways) can be attached to the RevPi Connect 5.
Further information about the devices can be found on our RevPi Connect 5 product page
| Compute Module version | Compute Module 5 |
|---|---|
| eMMC memory | 32 GB |
| Modularity | modular |
| LAN-Ports | 2 |
| USB-Ports | 2 (USB A 3.2) |
| USB-C | 1 (solely for image transfer) |
| HDMI-Port | 1 (μHDMI; 4K) |
| Power supply | 24 V DC |
| IP code | IP20 |
| WEEE-Reg.-No.: | DE 34461592 |
