RevPi Flat S
Product Description

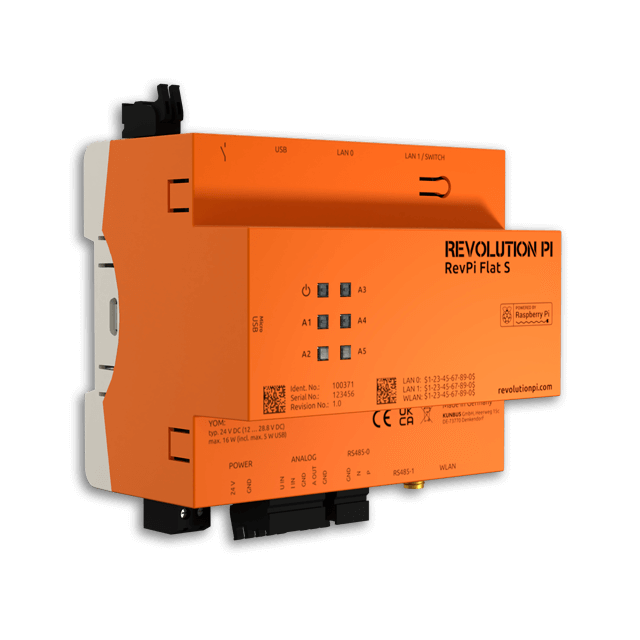

The RevPi Flat S is a powerful open-source IPC (Industrial Personal Computer) designed for DIN rail mounting, equipped with the Raspberry Pi Compute Module 4S. Its 1.5 GHz quad-core processor, 1 GB of RAM, and 32 GB eMMC flash storage offer solid performance for a variety of industrial applications.
Compared to its predecessor, the RevPi Flat S now features an external USB-OTG interface, allowing for straightforward installation of operating system images. Out of the box, the RevPi Flat S comes pre-installed with a specially adapted version of the Raspberry Pi OS, ensuring a quick and seamless start-up process.
With its compact design, the RevPi Flat S seamlessly fits into distribution cabinets commonly used in building automation. Unlike the RevPi Core and RevPi Connect devices, the RevPi Flat S is not modular in design and therefore cannot be expanded with additional modules.
Technical Data
| Modularity | non-modular |
|---|---|
| Compute Module version | Compute Module 4S |
| Processor | Broadcom BCM2711, quad-core Arm Cortex-A72 |
| Clock rate | 1.5 GHz |
| RAM | 1 GB |
| eMMC memory | 32 GB |
| LAN-Ports | 4 |
| USB-Ports | 2 (USB A 2.0) |
| µUSB-Ports | 1 (solely for image transfer) |
| HDMI-Port | 0 |
| RS485-Ports | 2 |
| IOs | 1 x digital output / 1 x analog input / 1 x analog output |
| Power supply | 24 V DC |
| IP code | IP20 |
| EAN | 4260498391875 |
| Country of Manufacturer | Germany |
| Customs tariff number | 84715000 |
| WEEE-Reg.-No.: | DE 34461592 |
You can find additional technical specifications in the data sheet.
