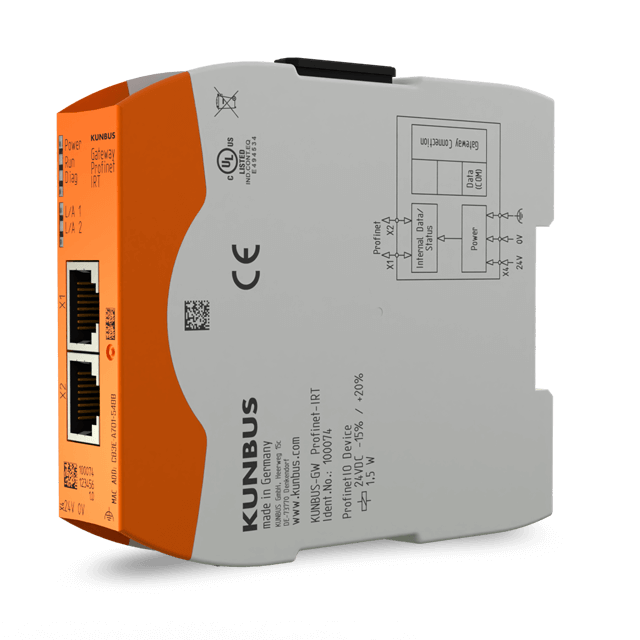

RevPi Gate PROFINET IRT - Device
Expansion module for PROFINET networks
In stock
Ready for dispatch: 1 - 2 working days (Mon-Fri)
Item no.
100074
€226.10
€190.00
Product Description
The RevPi Gate PROFINET IRT integrates the Revolution Pi system into an existing PROFINET network. The PROFINET gateway is connected to the respective base module via the overhead system connector.
Please note the following instructions:
- This module is the Device (Slave) variant and not a Controller (Master) module! If you are not familiar with industrial network protocols, please check with us beforehand to determine if such a module is suitable for your purposes.
- The gateway is incompatible with RevPi Connect 4, RevPi Connect SE, and RevPi Core SE.
- Please note that for each RevPi Gate, you will need a jumper to connect it to your Revolution Pi system, which is not included in the delivery. Additionally, please order the PiBridge plug separately.
Technical Data
| Product type | Gateway |
|---|---|
| Protocol | PROFINET IRT |
| Version | Device (Slave) |
| compatible with | RevPi Connect 5, RevPi Connect S, RevPi Core S |
| Bus connector | 2 x RJ45 |
| Max. baud rate | 100 Mbit/s |
| I/O-Data | 512 Bytes IN/OUT |
| Power supply | 24 V DC |
| IP code | IP20 |
| EAN | 4260498390045 |
| Country of Manufacturer | Germany |
| Customs tariff number | 85389091 |
| WEEE-Reg.-No.: | DE 34461592 |
You can find additional technical specifications in the data sheet.
Manufacturer address
KUNBUS GmbH
Heerweg 15c
73770 Denkendorf
Deutschland
Tel: +49(0)71140091500
E-Mail: sales@kunbus.com
Web: kunbus.com
