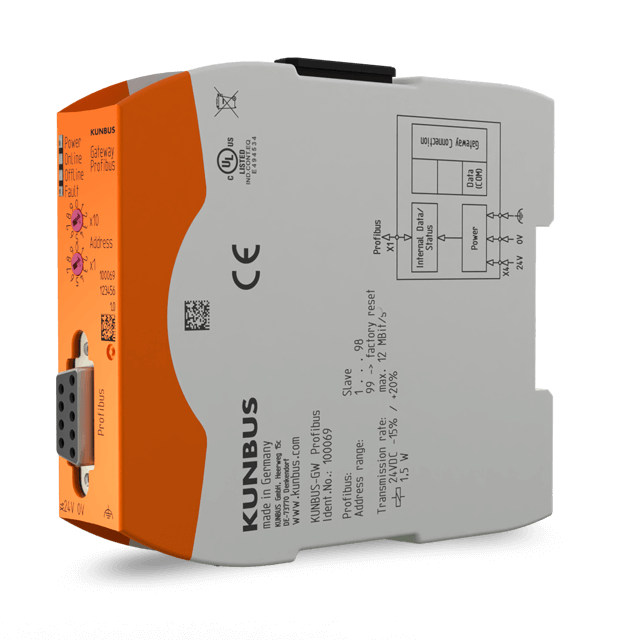

RevPi Gate PROFIBUS - Slave
Expansion module for PROFIBUS networks
Currently out of stock
Item no.
100069
€230.86
€194.00
Product Description
The RevPi Gate PROFIBUS integrates the Revolution Pi system into an existing PROFIBUS network. The PROFIBUS gateway is connected to the respective base module via the overhead system connector.
Please note the following instructions:
- This module is the Slave variant and not a Master module! If you are not familiar with industrial network protocols, please check with us beforehand to determine if such a module is suitable for your purposes.
- The gateway is incompatible with RevPi Connect 4, RevPi Connect SE, and RevPi Core SE.
- Please note that for each RevPi Gate, you will need a jumper to connect it to your Revolution Pi system, which is not included in the delivery. Additionally, please order the PiBridge plug separately.
Technical Data
| Product type | Gateway |
|---|---|
| Protocol | PROFIBUS |
| Version | Slave |
| compatible with | RevPi Connect 5, RevPi Connect S, RevPi Core S |
| Bus connector | D-SUB 9F |
| Max. baud rate | 12 Mbit/s |
| I/O-Data | 244 Bytes IN/OUT |
| Power supply | 24 V DC |
| IP code | IP20 |
| EAN | 4260498390052 |
| Country of Manufacturer | Germany |
| Customs tariff number | 85389091 |
| WEEE-Reg.-No.: | DE 34461592 |
You can find additional technical specifications in the data sheet.
Manufacturer address
KUNBUS GmbH
Magirusstr. 7
73760 Ostfildern
Deutschland
Tel: +49(0)71140091500
sales@kunbus.com
kunbus.com
